User Interface Elements in the Mobile App

The following user interface elements appear in the Mobile App:

The Title Bar

The Title Bar appears at the top of the Mobile App on all screens except this for specific checklist items:

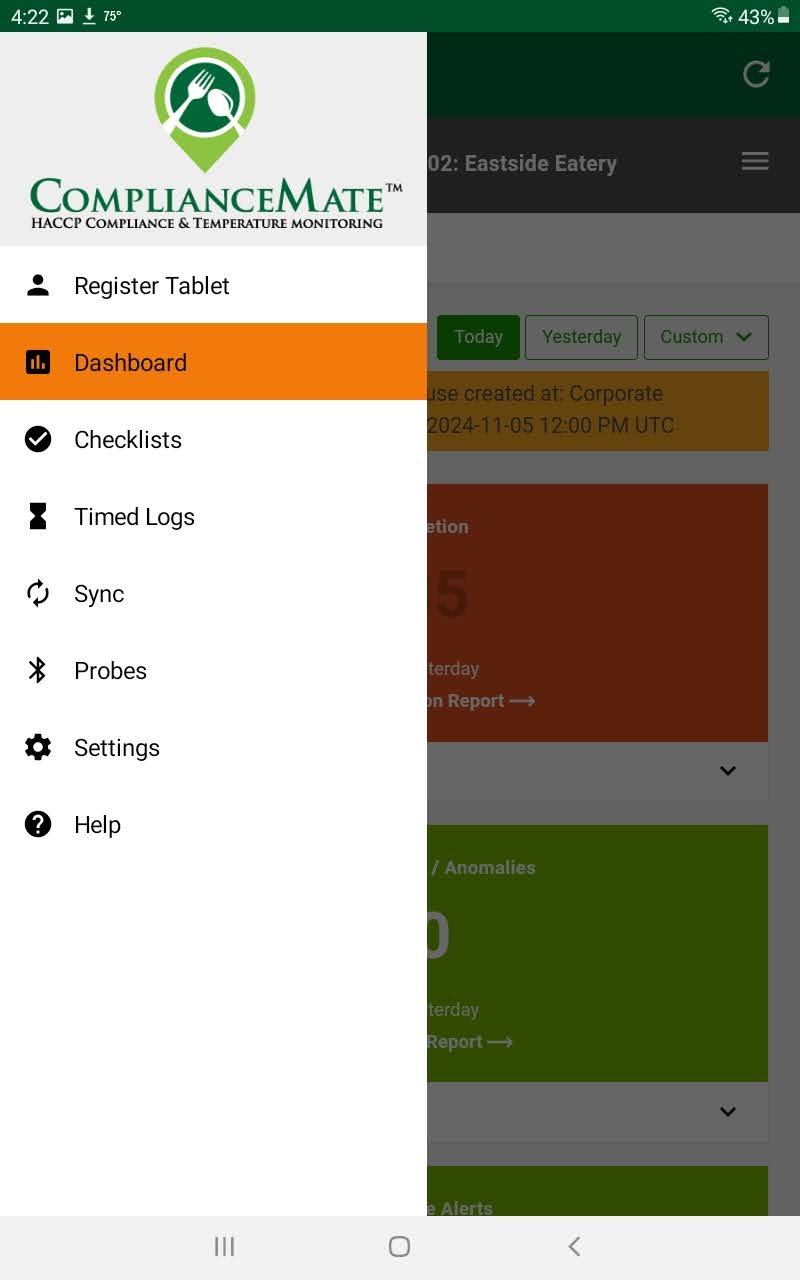

The Mobile App Menu Icon

The Mobile App Menu Icon, also referred to as a “hamburger icon” or “3-bar icon,” is located on the left side of the title bar and displays the Mobile App menu when tapped, providing access to the Mobile App functions (e.g., Checklists, Timed Logs, or the Dashboard):

The Refresh Icon

The Refresh icon, located on the right side of the title bar refreshes the screen for the active function when tapped:

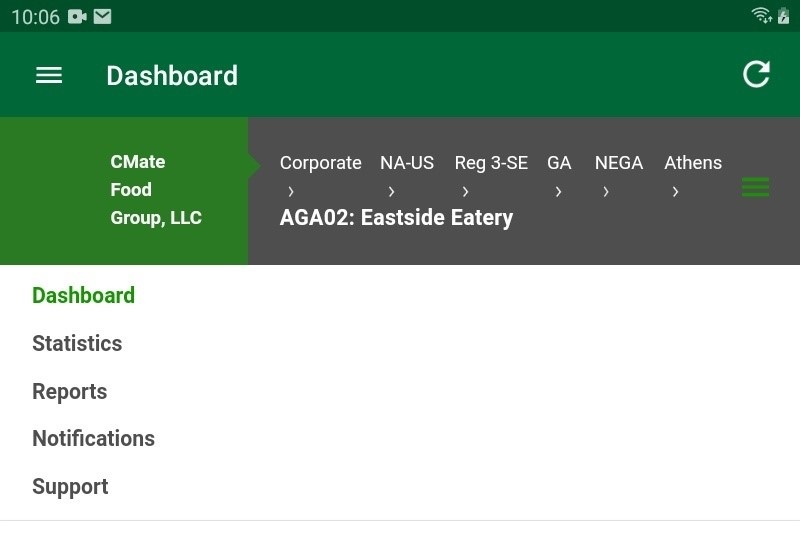

The Navigation Bar

The Navigation Bar only appears below the title bar on the Dashboard and includes the name of the location's parent organization, the name of the location (in bold), and the group branch in which it resides:

The navigation bar includes the following elements from left to right:

• • The name of the organization to which the location associated with the tablet belongs.

Dashboard Menu Icon

The Dashboard Menu Icon, also referred to as a “hamburger icon” or “3-bar icon,” is located on the right side of the Navigation Bar and, when tapped, displays the Dashboard menu which is a subset of the Server App menu:
